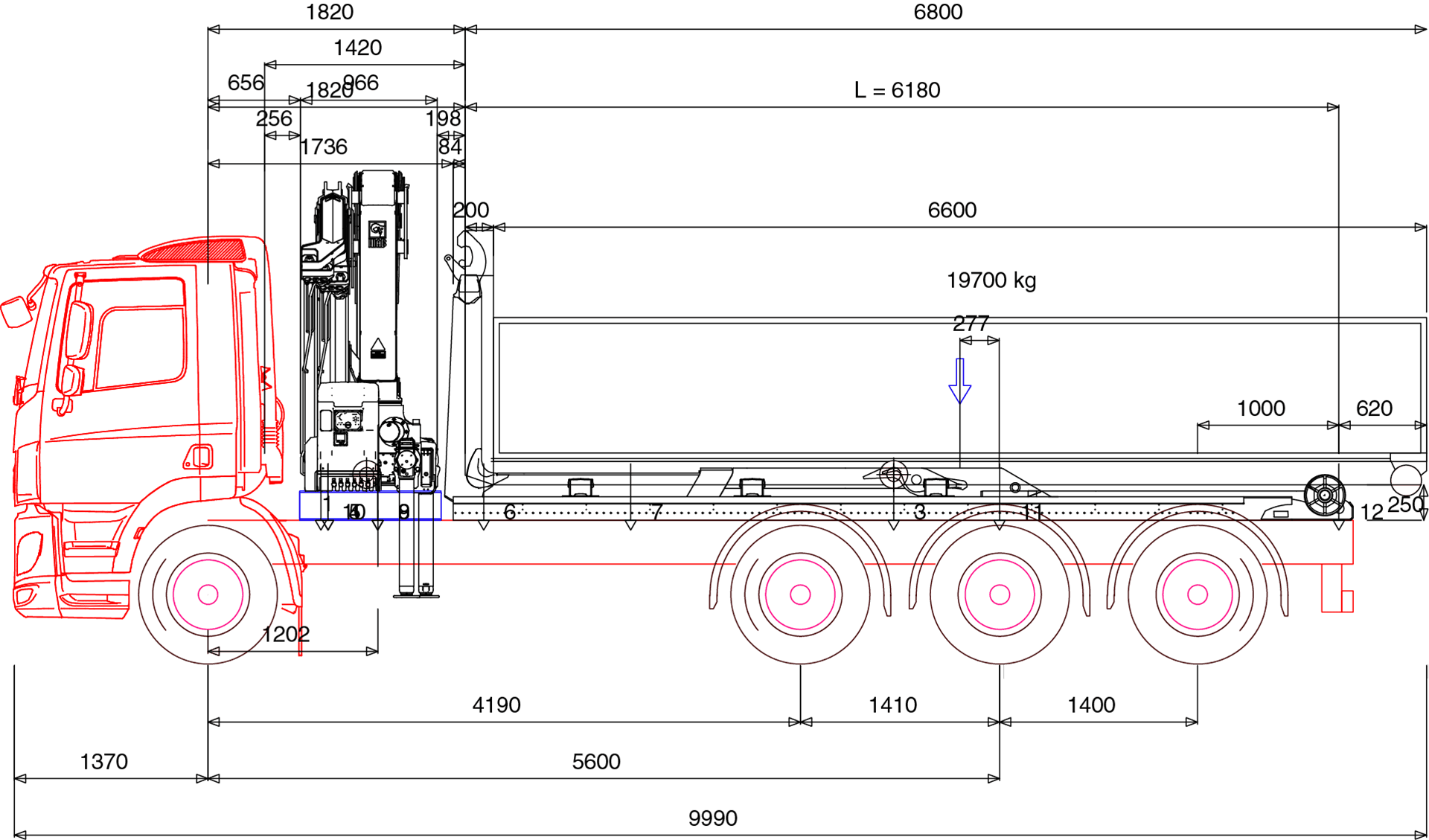

DAF - X-HiPro 232 + Multilift


Specification DAF FrameWorks demo

Download Specification

Contact: frameworks@hiab.com

Crane: HIAB X-HiPro 232E-3

Lifting capacity (ADC): 20,7 tm
Slewing angle: 415°
Maximum outreach: 10,6 m
Type stabilisers: Fixed
Stabiliser spread: 5500 mm
Oil flow: 120 liter/min
Installation space: 977 mm
Type VSL: VSL3
Extra functions:

  • Extension real outside
  • CTC
  • SAF
  • Platform

Truck brand and type: DAF CF400 8x2 FAQ

Cabin: Day cab
Color cabin: Black
Wheelbase: 5600 mm
Tires front axle: 385 / 65 R22,5
Tires pusher axle: 385 / 65 R22,5
Tires drive axle: 315 / 80 R22,5
Tires rear steer axle: 385 / 65 R22,5
Front axle capacity: 9 ton
Rear axle capactity: 27 ton (8 + 11,5 + 7,5)
Gross vehicle weight: 32 ton

Installation: HIAB FrameWorks

Type subframe: HIAB FrameWorks Multibeams
Type oil tank: Chassis tank 200 L aluminium
Type pump: Load sensing variable

Hooklift: Multilift

Type: Multilift XR26S
Mounting height: 270 mm
System length: 6100 mm
Hydraulic body locking: Inside in front, outside in back
Installation kit: DAF
Additional functions:

  • Friction relief
  • Automatic sequence control
  • Fast speed
  • Fast tipping
  • Warning buzzer, mounted outside cabin
  • Hour meter

Under run bar: Electrical 800 mm
